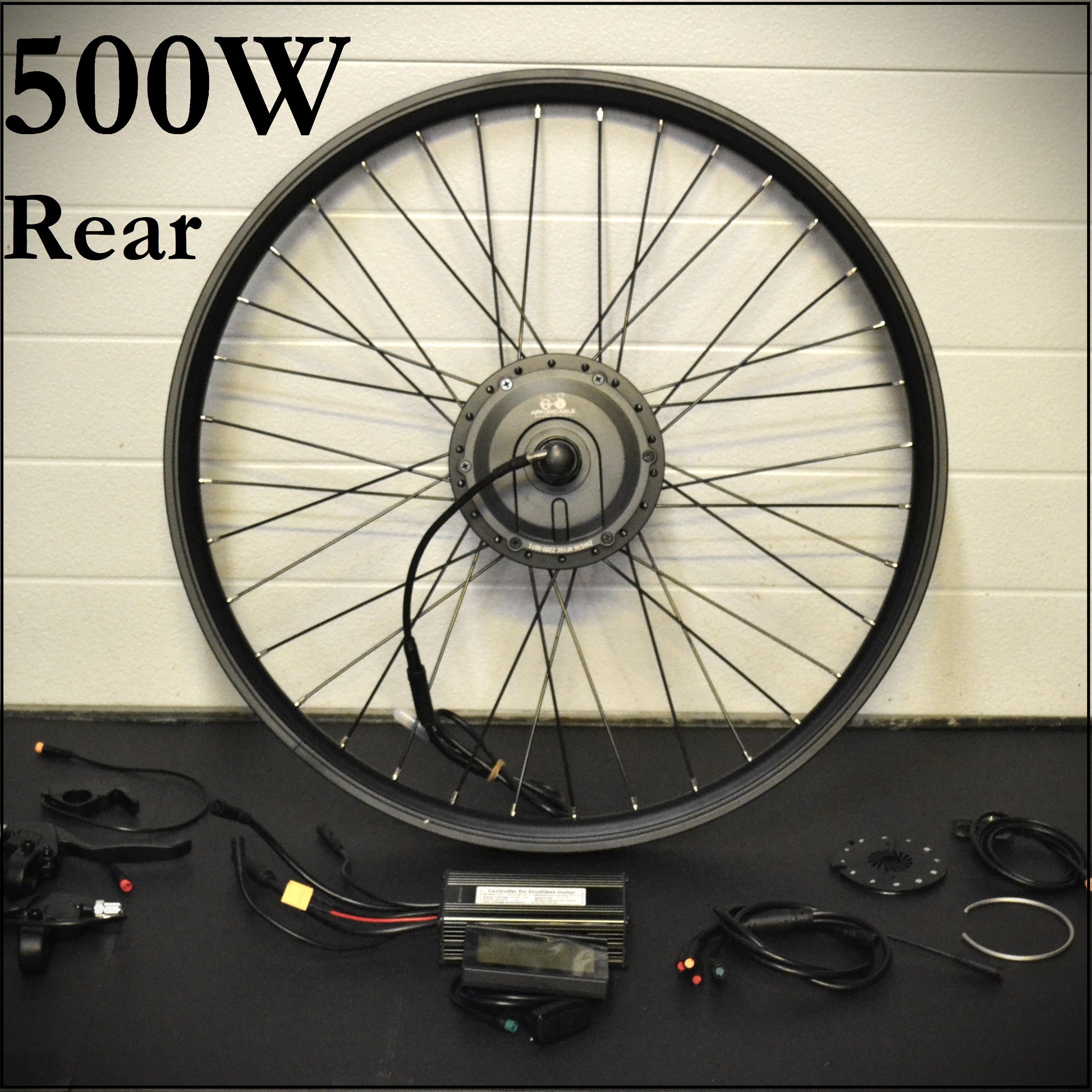

500W Rear (Freewheel) Geared Hub Motor Kit

500W Rear (Freewheel) Geared Hub Motor Kit

Regular price $475.00 CAD
Regular price Sale price $475.00 CAD
Sale Sold out
Wheel Size

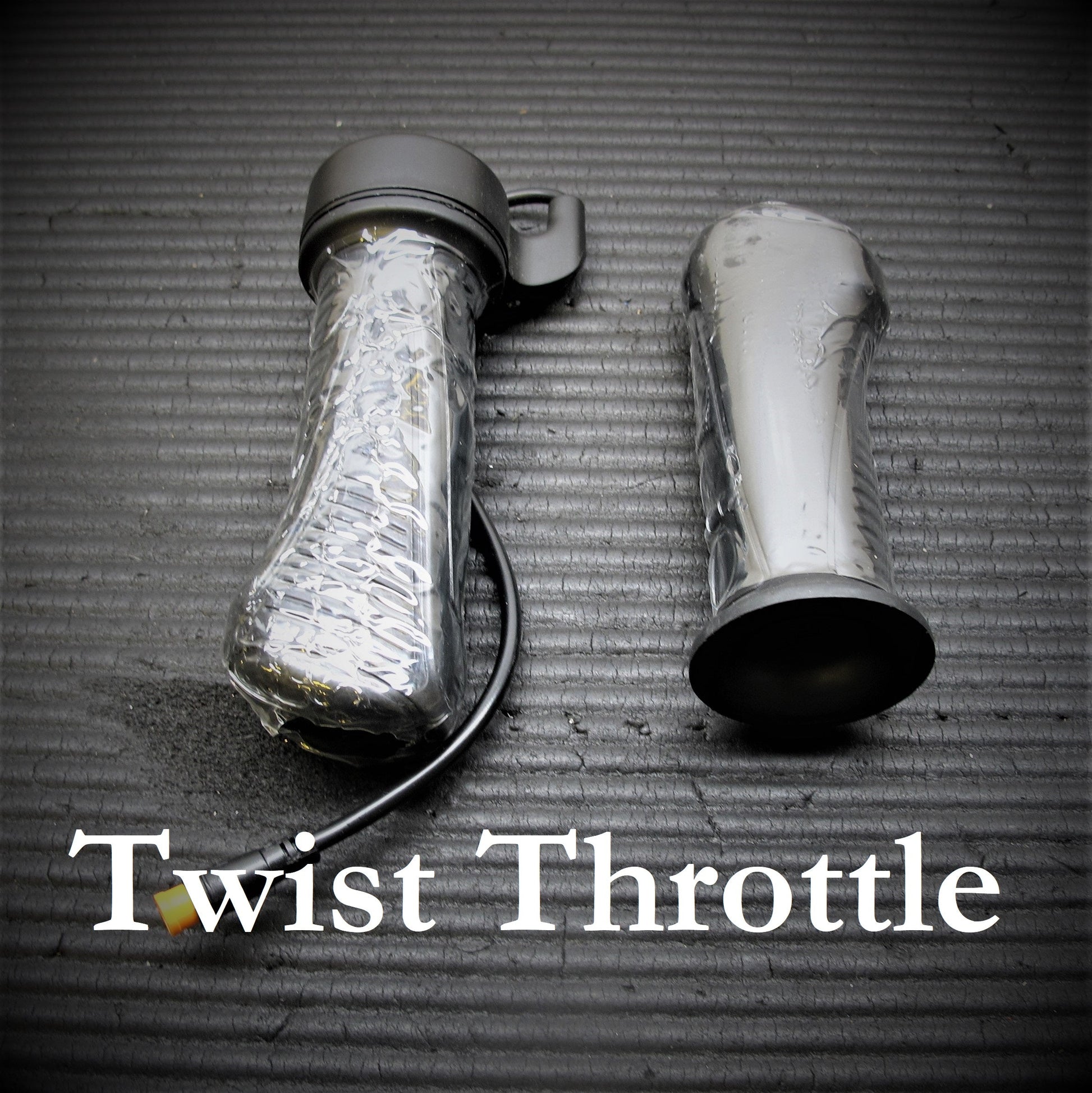

Twist Throttle

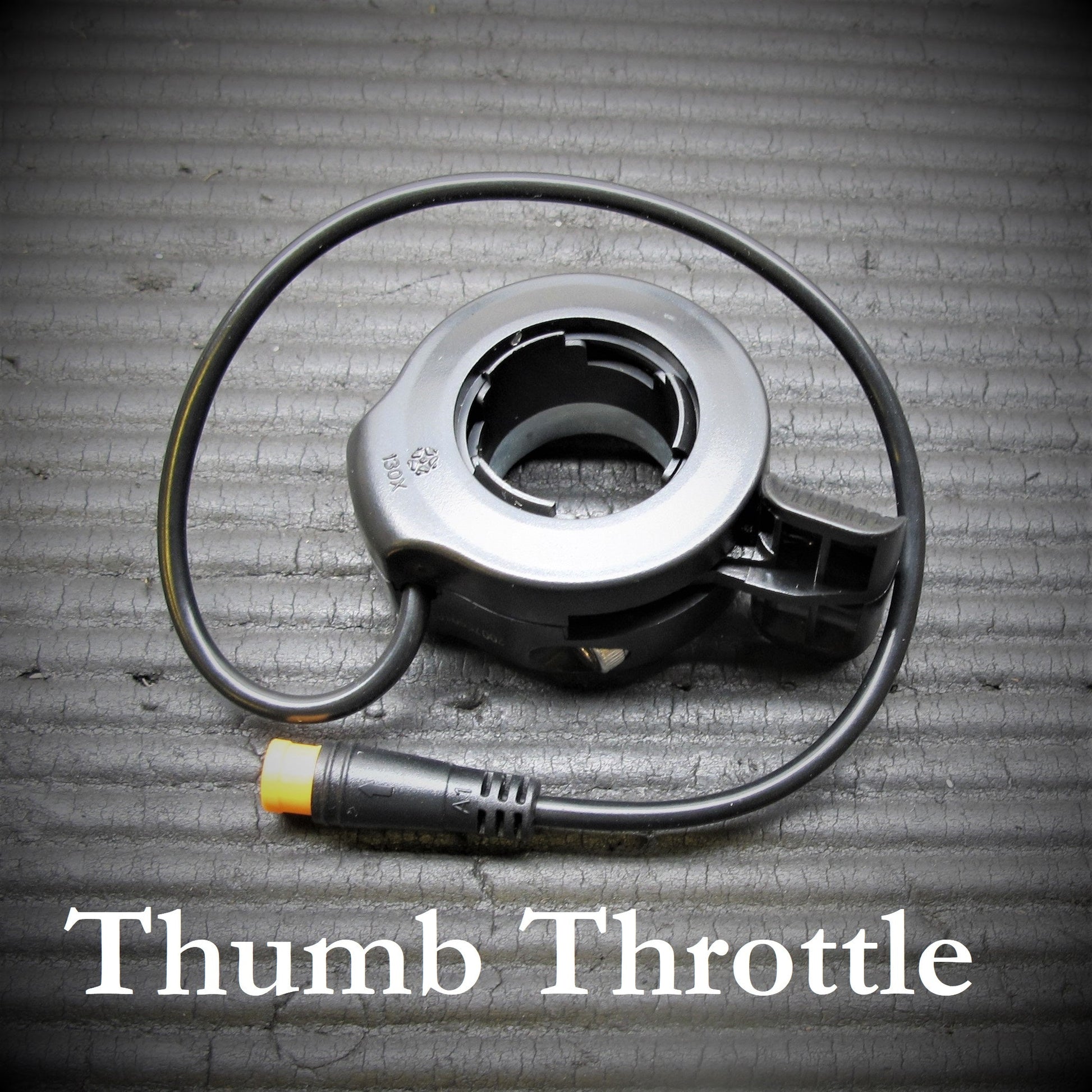

Thumb Throttle


Magnetic Sensor (Stick-On)

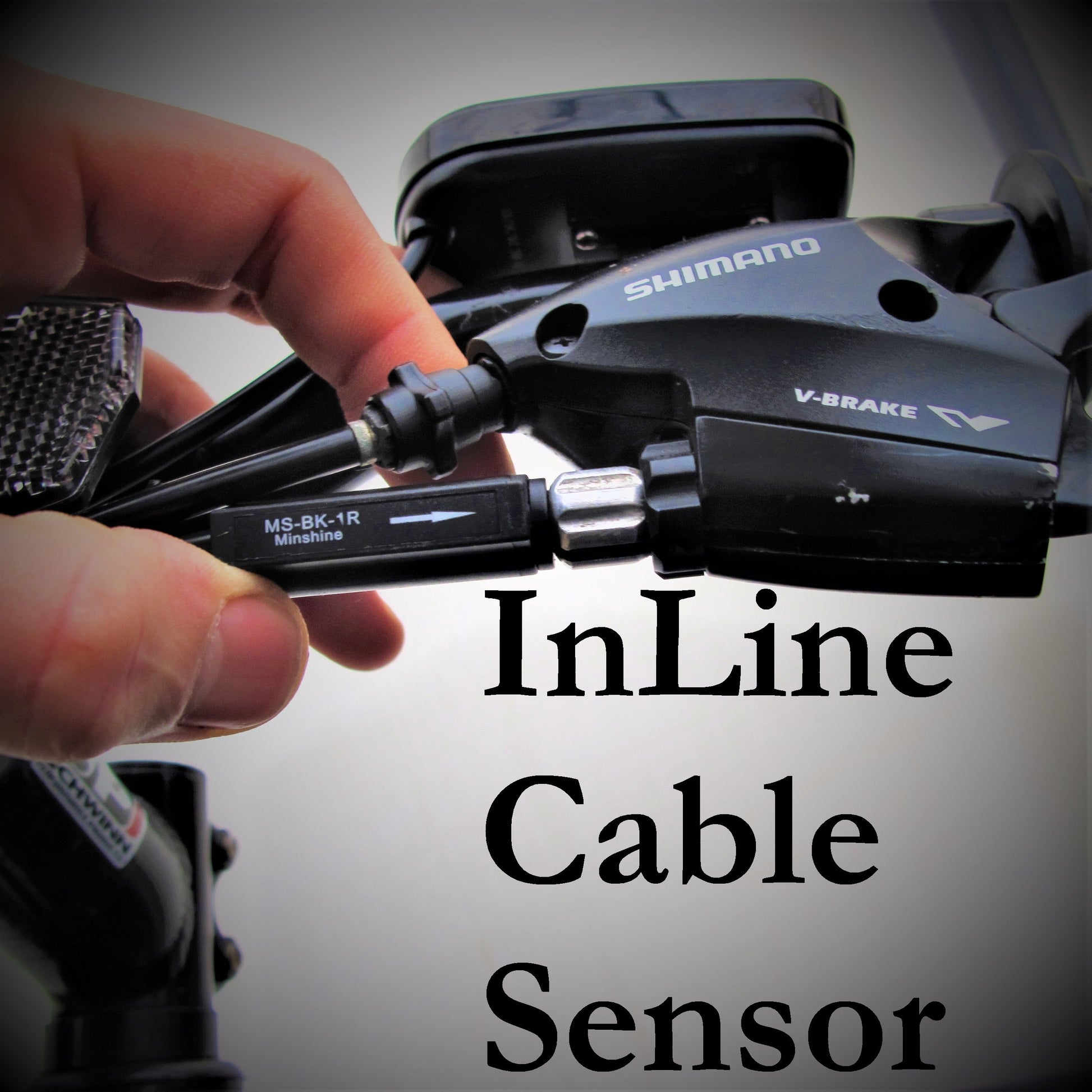

Inline Cable Sensor

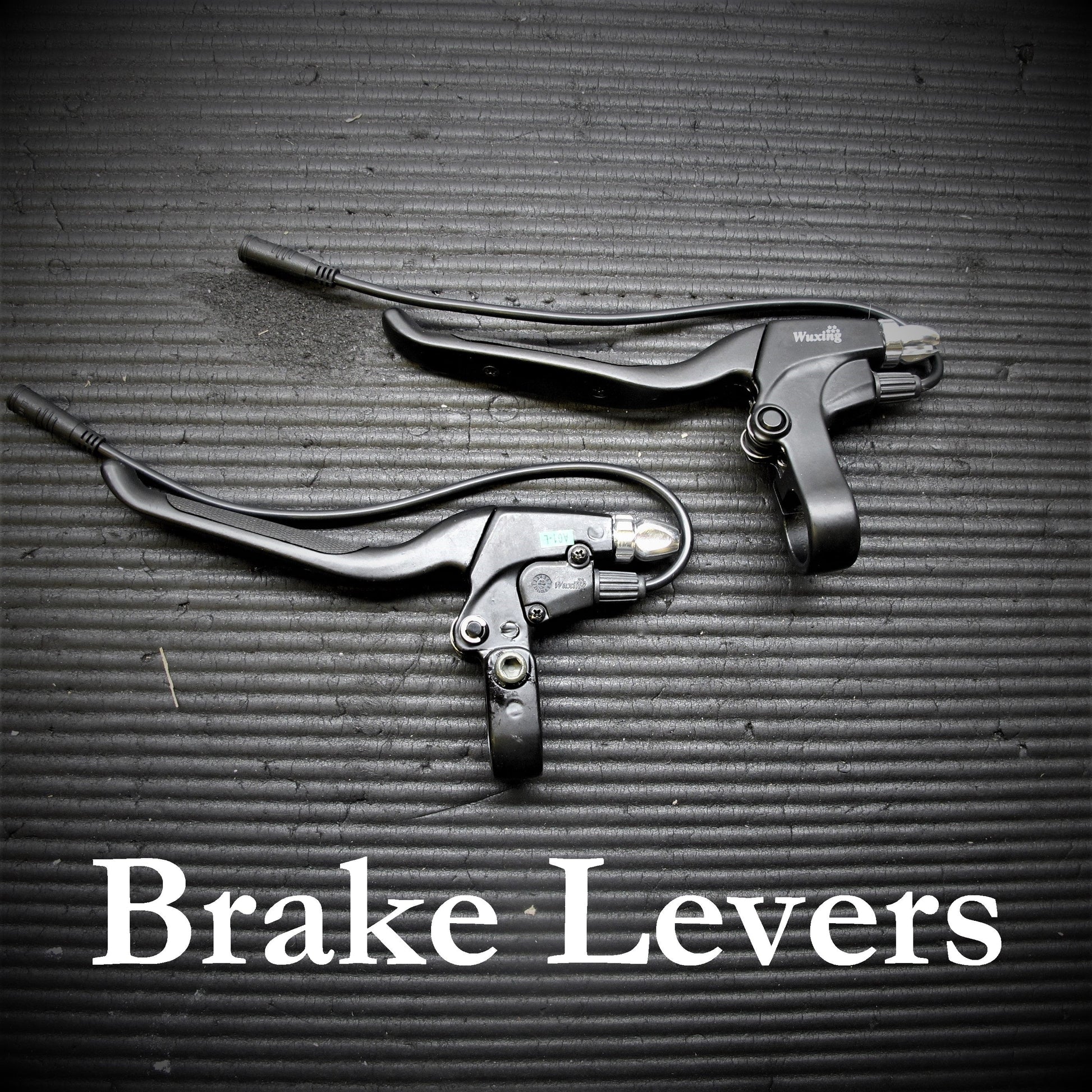

Brake Levers w Sensors

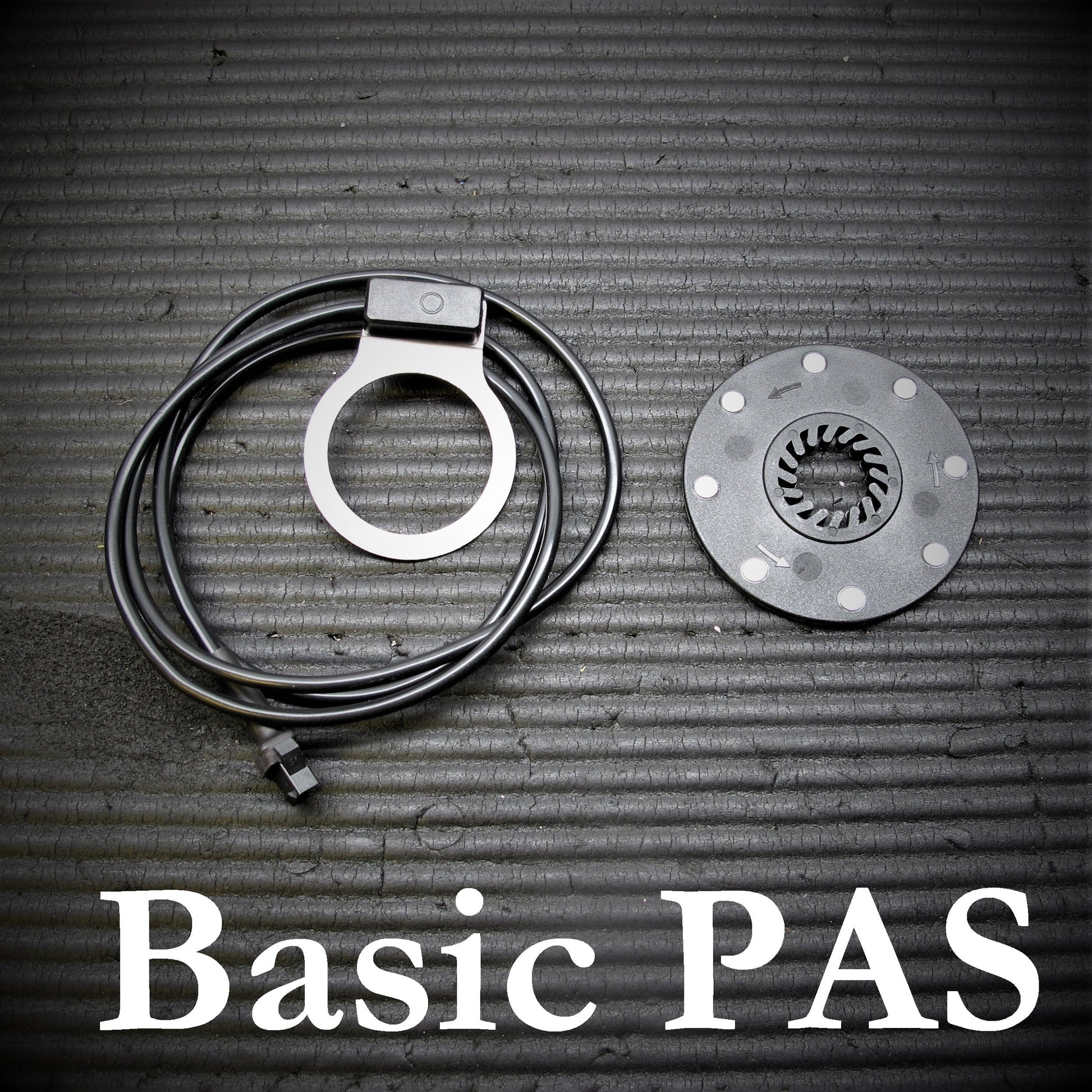

Basic Style (Universal)

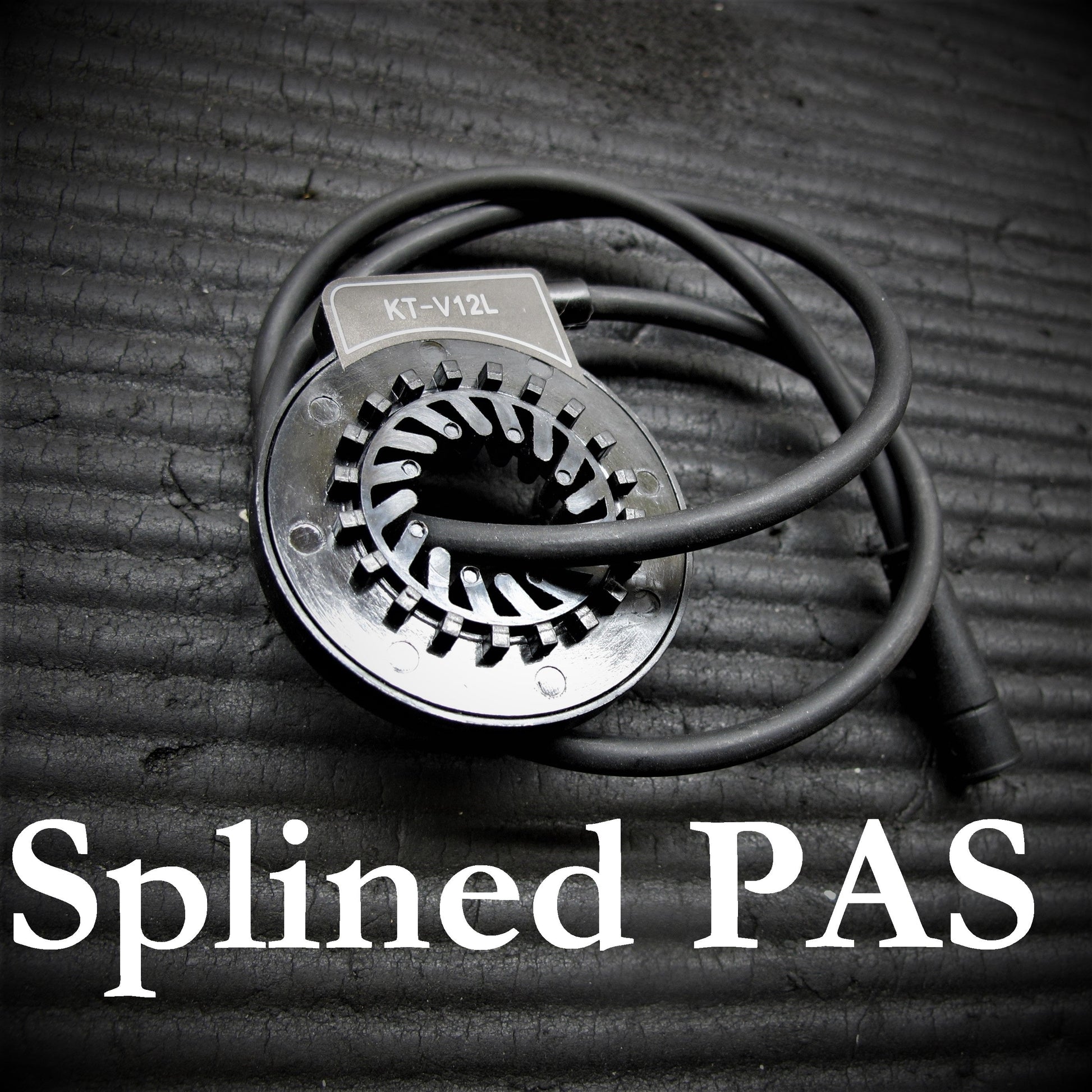

Splined Type

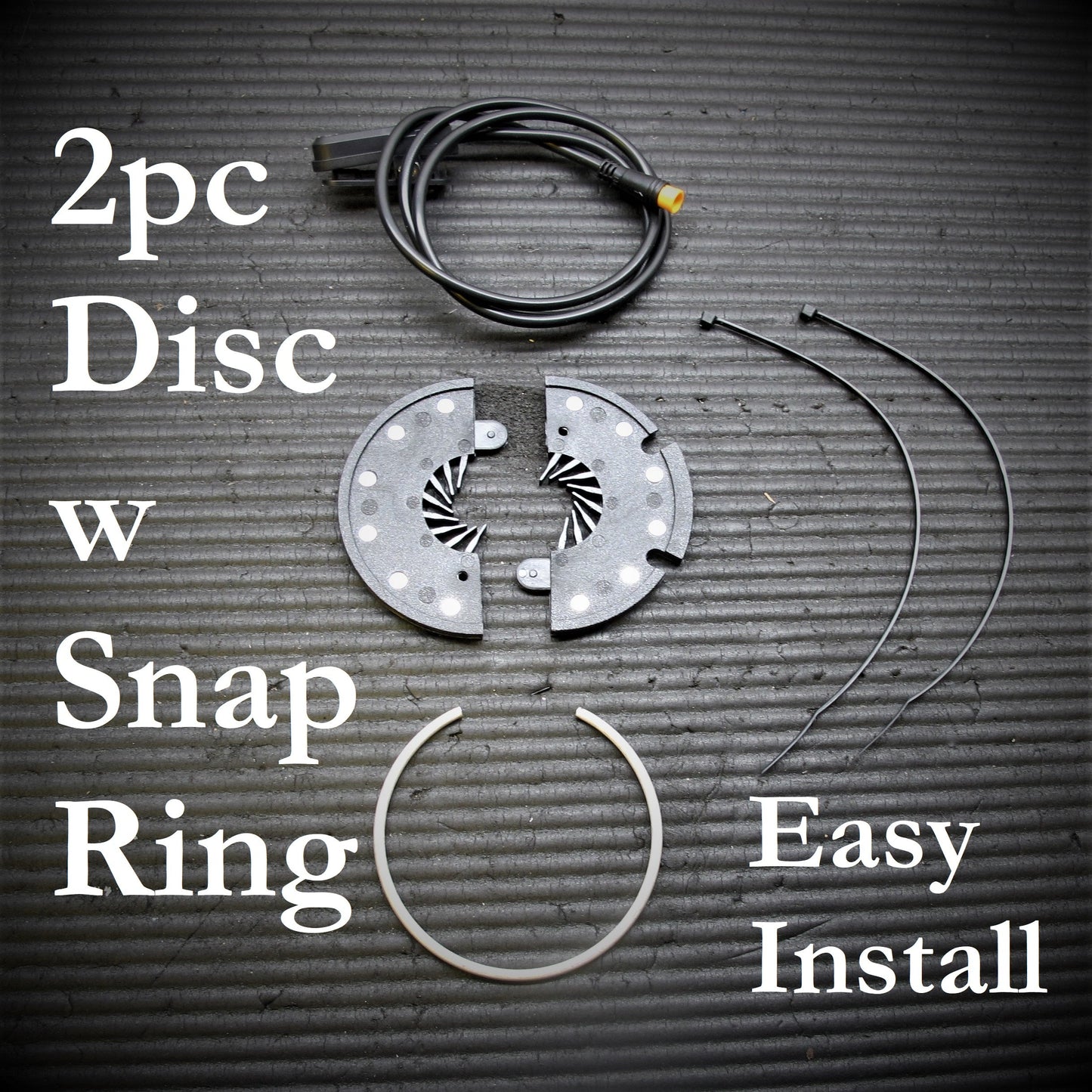

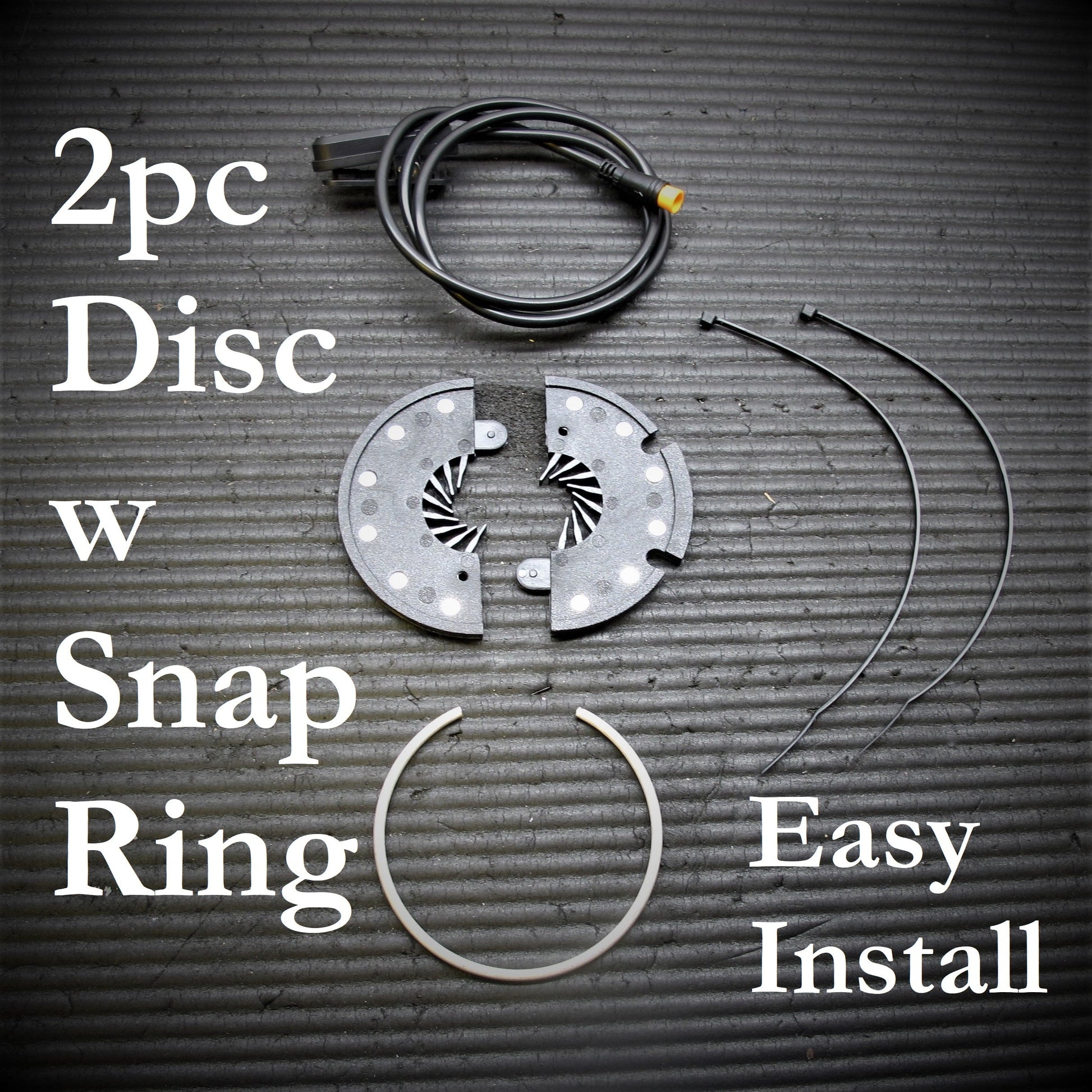

2pc Disc w Snapring

Shipping & Returns

Free Shipping over $500!

$14.99 Flat Rate Under $500

$39.99USD Flat Rate for USA Based Customers under $500

Care Instructions

Please Store Lithium Batteries between 30-70 Percent Charge

Do not Charge Batteries Below Freezing

Check Spokes Regularly for Tension

Components are Water Resistant, not Waterproof!

View full details

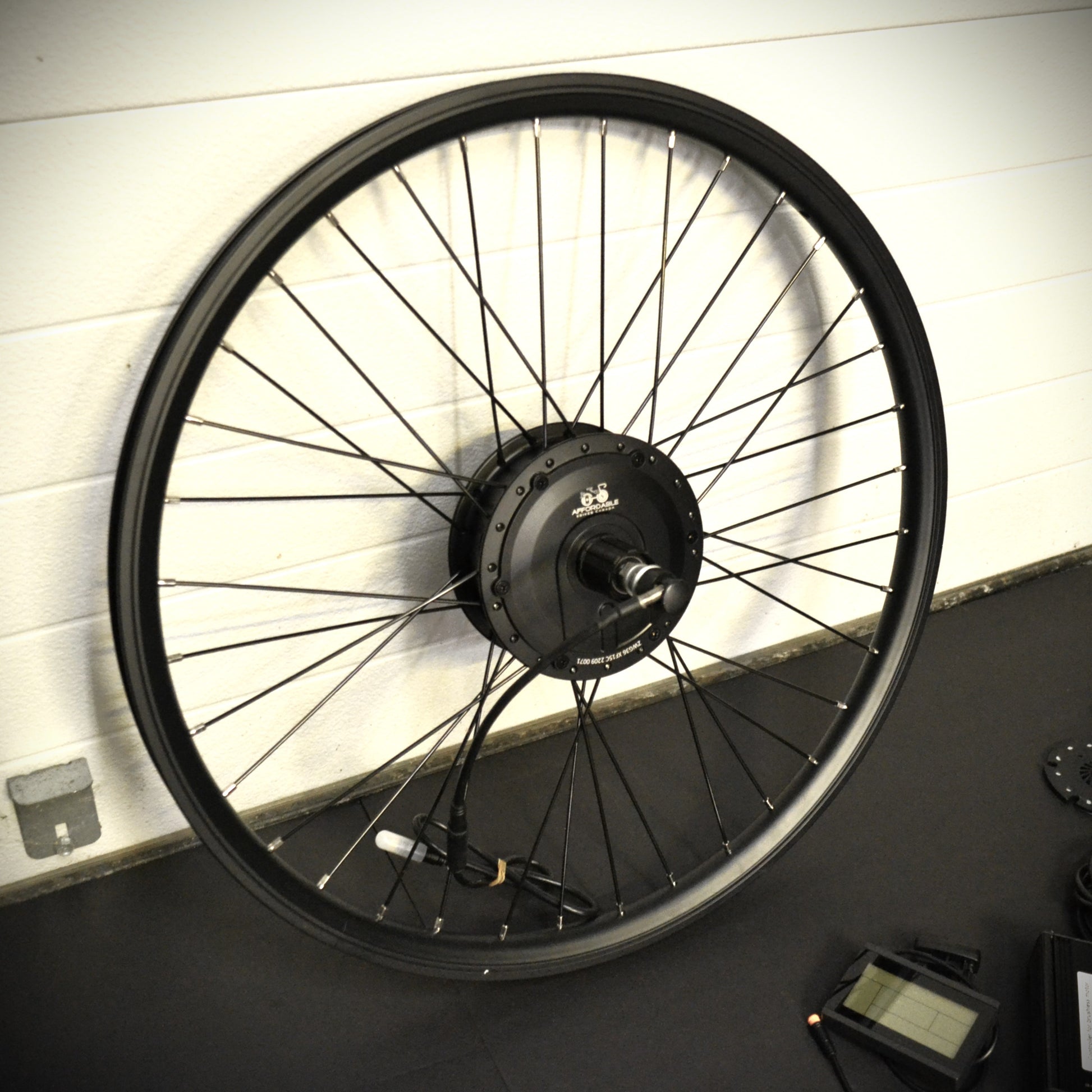

These are our latest Rear Hub Motor Kits using very high quality parts!

Please note, these are FREEWHEEL versions. If you need a freewheel we have them available HERE

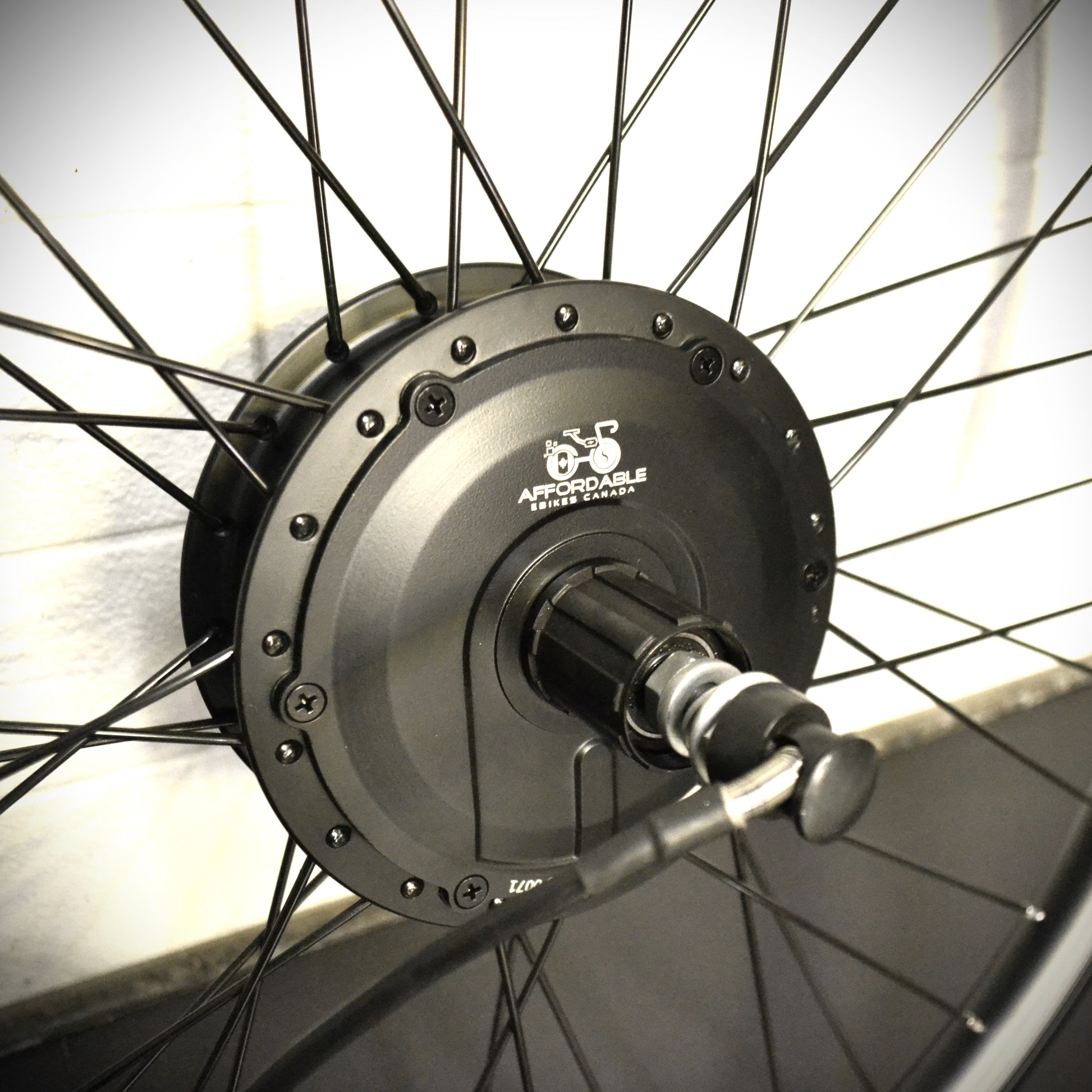

This is a very strong and durable motor made by one of the largest and most reliable motor manufacturers (MXUS).

The included motor controllers are sine wave, anodized black, and made by Kunteng, which is an excellent controller manufacturer.

These kits are front and rear light capable, we have lights that plug directly into the harness and can be turned on via holding UP on the display.

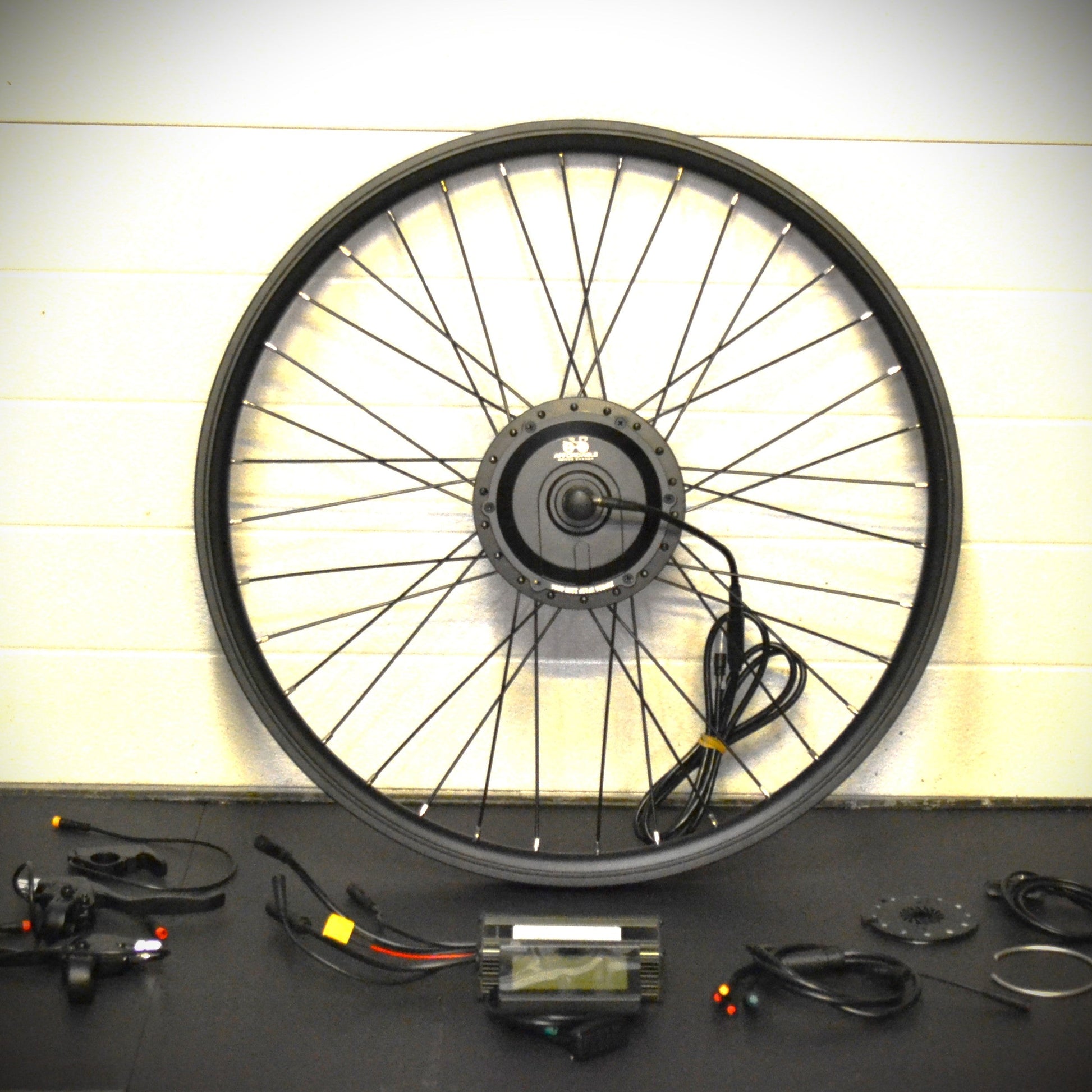

All kits come with a throttle, pedal assist sensor, LCD Display, Brake Levers (sensors) and ALL WATERPROOF cabling!

These wheels work with both Disc Brakes as well as Caliper / V-Brakes.
The rims are anodized black, dual walled T6 aluminum, and are very strong.
Spokes are 12 Gauge (Thick) Stainless Steel all black with silver nipples.

These are some serious motors!

Motor Model : MXUS GDR15
Rated Power : 500 Watts
Rated Voltage : 36V / 48V / 52V
Controller : 36V / 48V KT 22A Peak Sinewave
Cabling : Waterproof Julet 1 to 5
Light Capable : YES (front and rear)
Display Included : YES (KT LCD3)
Choice of Throttle
Choice of Brake Sensor
Choice of Pedal Assist Sensor
