SURRON LBX Battery Upgrade - 60V - All Options

SURRON LBX Battery Upgrade - 60V - All Options

Regular price $2,500.00 CAD
Regular price Sale price $2,500.00 CAD
Sale Sold out
Cell Type
View full details

FINALLY! We've released something we've been working on for a while, a fully in house developed MAJOR upgrade for a Surron LBX.

Samsung 50E = 10KW-12KW peak
    (70AH)       = Double Range of Stock

Molicel P42A = Up to 18KW (or more)
   (58.8AH)     = Huge Range Increase

Molicel P45B = Up to 18KW (or more)
   (63AH)        = Huge Range Increase
                       = Lowest Heat Generation
                       = Lowest Voltage Sag

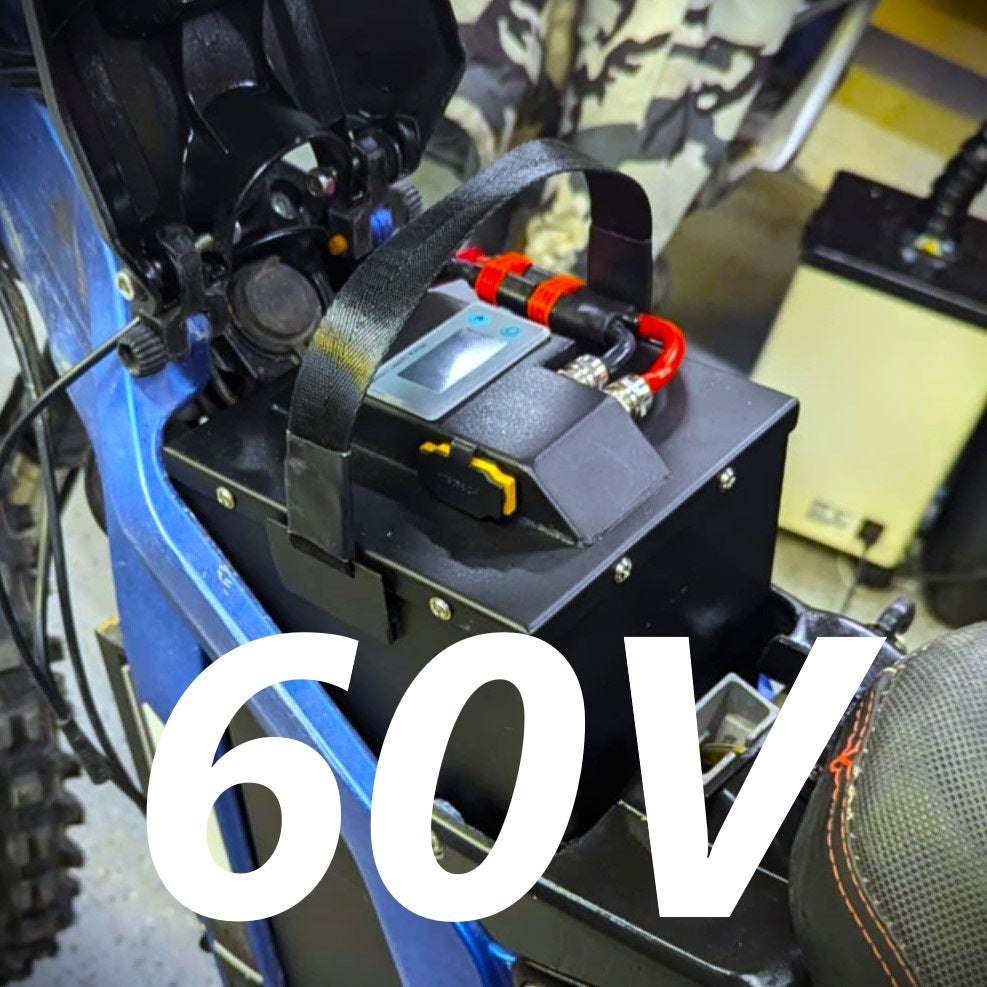

This is for the 60V Upgrade, 72V is also available.

The 60V Option allows you to;

- Use your stock controller, and enjoy approx double the range
- Can upgrade controller for power later if desired
- Highest Density (fits 4 more cells than 72V version)
- Retain Stock OEM Charger (adapter included) to save you cost

The 72V Option allows you to;

- Can run more power than 60V (less amps needed)
- Slightly less heat generation than 60V for a given output
- Higher Top Speed due to higher voltage

We did not cut corners on this, we did not want to offer a "bypassed" battery, this is fully protected by a high current BMS. We developed a fully stainless powder coated enclosure to house the pack, integrated a display and XT60 charge connection for high current charging, and routed the main discharge cable in a way that makes sense.

Includes 3D Printed Lift Kit, gives a stock looking feel


Features

- Custom Powercoated Fully Stainless Steel Enclosure

- Full Custom CNC Copper Bus Bars

- Custom PCB for balance lead traces

- Best high Current Bluetooth ANT BMS on the market (rated 550A peak and over 200A continuous)

- NON BYPASSED ! This battery is fully protected by the BMS ! Most aftermarket batteries are bypassed and this can be very dangerous ! We used the best BMS available to still be able to offer exceptionally high current

- BMS allows protection against overvoltage / under voltage / over current / over temperature/ short circuiting

- BMS also has built in ON/OFF soft switch so need to worry about resistor circuits being in place

- Built in Display shows battery level and temperature

- Battery is fiberglass panelled internally to protect against stainless enclosure

- Thick high temp silicone 8AWG wires to Supra Connector OR 7AWG to QS8 connector available

- NON-POTTED means the battery is repairable in the future

- Cell Spacers are utilized between cell groups to provide isolation

- BUILT IN CANADA with 2 year warranty !

Contact for more details !
